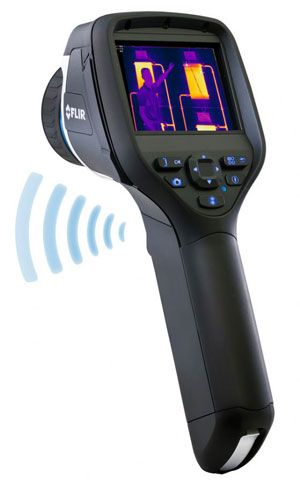

FLIR E60
The FLIR E60 thermal imaging camera is a compact, lightweight, easy to use thermal imager designed for everyday electrical / mechanical inspections by the novice or intermediate thermographer.
320 x 240 IR Resolution , -20 to 650 Deg range
3.5 inch touch screen , WIFI connectivity to mobile devices
The New FLIR E60 Compact Thermal Camera
 It includes all the features of the entry level FLIR E40 thermal imager and adds several important on-screen analysis tools, enhanced visualization and communications/reporting features required for more demanding applications.
FLIR E60 Key Features
Temperature - The FLIR E60 features a 320x240 IR sensor (76,800 temperature measurement points) which updates at 60Hz and delivers temperature measurement with <0.05 Deg C thermal sensitivity and 2% accuracy. It features one temperature range suitable for electrical / mechnical applications from -20 to +650 Deg C
Hardware - Thermal images are displayed on a 3.5” touch screen display with large backlit buttons that fit a bare hands or gloves. The newly developed housing is the most rugged that FLIR has ever built. The battery is a Li Ion battery that lasts 4 hours continuous use. Memory comes in the form of a 2GB microSD card that stores 1000 images including thermographic data.
There is an easy-to-use manual focus lens with a minimum focus distance of just 0.1m or 3.9” so it can be used for close-up targets. It also includes a 4x digital focus.
Measurement Modes & On-Screen Analysis - This infrared camera offers 5 measurement modes: 3 moveable spots, 3 area boxes with min/max indicators, isotherm (above or below threshold alarms), auto hot/cold spot and delta T (differential temperature), Voice/Text Annotation and Video Recording. In addition, the FLIR E60 includes visual insulation and dewpoint alarms for the easy detection of poor/missing insulation and moisture.
Images & Visualization - Thermal images can be displayed using any of 6 different color palettes or inverted versions of each one for a total of 12 different palettes.
In addition to the full thermal image display, this thermal imager includes a 3MP visual light camera and a fixed-size picture-in-picture display that overlays the thermal image over the visual light image to place the thermal image into context. A bright LED light is built-in to illuminate the target for visual light images and a laser pointer indicates both the physical target and an indicator represents the position of the laser pointer on the display.
Communications - The FLIR E60 includes composite and miniUSB video outputs as well as several innovative communications technologies that are unique to the FLIR line. These include METERLINK for reading moisture information from some Extech clamp meters and Bluetooth communication to a PC or SmartPhone.
Brand new cutting edge features also include WIFI communication with an iPhone/iPad or using the FLIR Viewer app which is great for sharing reports and critical information quickly.
Software and Reporting -The FLIR E60 thermal imaging camera includes Instant Report software that allow the thermographer to instantly create a professional reports right from the camera! Reports include the thermal and visual images along with readings from temperature measurement (like spots, boxes, min/max, etc) and text/sketch annotations in a PDF format thatʼs easy to share right from the touchscreen. This handy time-saving feature is unique to FLIR products.
Industry-Leading Warranty - The FLIR E60 is backed by FLIR Systems' comprehensive 2 years warranty on the camera (after registration).
|
